Description

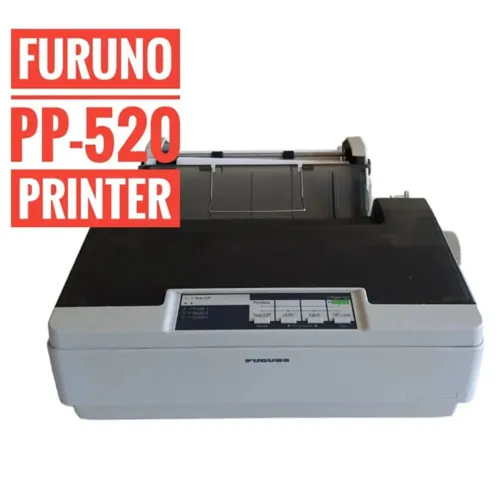

The Furuno PP-520 is a compact, 9-needle serial impact dot matrix printer specifically designed for marine GMDSS applications, such as printing messages from the IB-585 telex terminal or Inmarsat-C systems. It operates on 24 V DC, supports 208-216 mm wide paper, and offers a print speed of 200 characters/second, ensuring reliable operation in harsh maritime environments.

• Model: Furuno PP-520 (GMDSS Compliant)
• Type: 9-pin serial impact dot matrix
• Power Supply: 24 V DC (1A)
• Paper Width: 208-216 mm (8.2-8.5 inches)
• Ribbon Life: Approx. 3 million characters
• Dimensions/Design: Compact, designed for marine, bulkhead or tabletop mounting
• Compatibility: Designed for Furuno FELCOM18/19, and commonly used with GMDSS stations
• Noise Level: < 59 dB

• Connection: Uses a 36-pin connector to the printer and a 25-pin connector for the radio terminal.
• Power Input: Requires 24V DC, typically wired from GMDSS battery supplies to ensure power during emergencies.
• Setup: Requires a 24V DC power cable (e.g., 16S0084) and a 36-pin signal cable.
• Maintenance: Keep away from areas with heavy water spray or excessive oil/dust.
